Security

18 minute read

Breaking down a monolithic application into atomic services offers various benefits, including better agility, better scalability and better ability to reuse services. However, microservices also have particular security needs:

To defend against man-in-the-middle attacks, they need traffic encryption.
To provide flexible service access control, they need mutual TLS and fine-grained access policies.
To determine who did what at what time, they need auditing tools.

Istio Security provides a comprehensive security solution to solve these issues. This page gives an overview on how you can use Istio security features to secure your services, wherever you run them. In particular, Istio security mitigates both insider and external threats against your data, endpoints, communication, and platform.

The goals of Istio security are:

Security by default: no changes needed to application code and infrastructure
Defense in depth: integrate with existing security systems to provide multiple layers of defense
Zero-trust network: build security solutions on distrusted networks

Visit our mutual TLS Migration docs to start using Istio security features with your deployed services. Visit our Security Tasks and Security Best Practice for detailed instructions to use the security features.

High-level architecture

Security in Istio involves multiple components:

A Certificate Authority (CA) for key and certificate management
The configuration API server distributes to the proxies:
Sidecar and perimeter proxies work as Policy Enforcement Points (PEPs) to secure communication between clients and servers.
A set of Envoy proxy extensions to manage telemetry and auditing

The control plane handles configuration from the API server and configures the PEPs in the data plane. The PEPs are implemented using Envoy. The following diagram shows the architecture.

In the following sections, we introduce the Istio security features and you can find API usage details in the Security Tasks and Security Configuration section.

Istio identity and certificate management

Identity is a fundamental concept of any security infrastructure. At the beginning of a workload-to-workload communication, the two parties must exchange credentials with their identity information for mutual authentication purposes. On the client side, the server’s identity is checked against the secure naming information to see if it is an authorized runner of the workload. On the server side, the server can determine what information the client can access based on the authorization policies, audit who accessed what at what time, charge clients based on the workloads they used, and reject any clients who failed to pay their bill from accessing the workloads.

The Istio identity model uses the first-class service identity to determine the identity of a request’s origin. Istio securely provisions strong identities to every workload with X.509 certificates. Istio agents, running alongside each Envoy proxy, work together with istiod to automate key and certificate rotation at scale. The following diagram shows the identity provisioning flow.

Istio provisions keys and certificates through the following flow:

istiod offers a gRPC service to take certificate signing requests (CSRs).
When started, the Istio agent creates the private key and CSR, and then sends the CSR with its credentials to istiod for signing.
The CA in istiod validates the credentials carried in the CSR. Upon successful validation, it signs the CSR to generate the certificate.
When a workload is started, Envoy requests the certificate and key from the Istio agent in the same container via the Envoy secret discovery service (SDS) API.
The Istio agent sends the certificates received from istiod and the private key to Envoy via the Envoy SDS API.
Istio agent monitors the expiration of the workload certificate. The above process repeats periodically for certificate and key rotation.

This model allows for great flexibility and granularity for service identities to represent a human user, an individual workload, or a group of workloads. On platforms without a service identity, Istio can use other identities that can group workload instances, such as service names. For more information, check in Glossary Identity and Certificate Management tasks.

Authentication

Istio provides two types of authentication:

Peer authentication: used for service-to-service authentication to verify the client making the connection. Istio offers mutual TLS as a full stack solution for transport authentication, which can be enabled without requiring service code changes. If authentication policies use Permissive mode, Istio continues to use plain text between PEPs. To override this behavior explicitly enable mutual TLS mode with destination rules.
Request authentication: Used for end-user authentication to verify the credential attached to the request. Istio enables request-level authentication with JSON Web Token (JWT) validation and a streamlined developer experience using a custom authentication provider or any OpenID Connect providers, for example: ORY Hydra, Keycloak, Auth0, Firebase Auth, Google Auth.

In all cases, Istio stores the authentication policies in the Istio config store via a custom Kubernetes API. Istiod keeps them up-to-date for each proxy, along with the keys where appropriate. Upon any policy changes, the new policy is translated to the appropriate configuration telling the PEP how to perform the required authentication mechanisms. Istio sends configurations to the targeted endpoints asynchronously. Once the proxy receives the configuration, the new authentication requirement takes effect immediately on that pod.

Client services, those that send requests, are responsible for following the necessary authentication mechanism. For request authentication, the application is responsible for acquiring and attaching the JWT credential to the request. For peer authentication, Istio automatically upgrades all traffic between two PEPs to mutual TLS.

Istio outputs identities with both types of authentication, as well as other claims in the credential if applicable, to the next layer: authorization.

Mutual TLS authentication

Istio tunnels service-to-service communication through the client- and server-side PEPs, which are implemented as Envoy proxies. When a workload sends a request to another workload using mutual TLS authentication, the request is handled as follows:

Istio re-routes the outbound traffic from a client to the client’s local sidecar Envoy.
The client side Envoy starts a mutual TLS handshake with the server side Envoy. During the handshake, the client side Envoy also does a secure naming check to verify that the service account presented in the server certificate is authorized to run the target service.
The client side Envoy and the server side Envoy establish a mutual TLS connection, and Istio forwards the traffic from the client side Envoy to the server side Envoy.
The server side Envoy authorizes the request. If authorized, it forwards the traffic to the backend service through local TCP connections.

This mutual TLS solution:

Provides each service with a strong identity representing its role to enable interoperability across clusters and clouds.
Secures service-to-service communication.
Provides a key management system to automate key and certificate generation, distribution, and rotation.

Additionally, Istio supports mutual TLS authentication in PERMISSIVE mode, which allows a service to accept both plaintext traffic and mutual TLS traffic at the same time. This feature greatly improves the mutual TLS onboarding experience. The operator can gradually install and configure the client’s Istio sidecars to send mutual TLS traffic. Once the configuration of the clients is complete, mutual TLS could be set to STRICT mode. For more information, visit the Mutual TLS Migration tutorial.

Secure naming

Server identities are encoded in certificates, but service names are retrieved through the discovery service or DNS. The secure naming information maps the server identities to the service names. A mapping of identity A to service name B means “A is authorized to run service B”. The control plane watches the apiserver, generates the secure naming mappings, and distributes them securely to the PEPs. The following example explains why secure naming is critical in authentication.

Suppose the legitimate servers that run the service datastore only use the infra-team identity. A malicious user has the certificate and key for the test-team identity. The malicious user intends to impersonate the service to inspect the data sent from the clients. The malicious user deploys a forged server with the certificate and key for the test-team identity. Suppose the malicious user successfully hijacked (through DNS spoofing, BGP/route hijacking, ARP spoofing, etc.) the traffic sent to the datastore and redirected it to the forged server.

When a client calls the datastore service, it extracts the test-team identity from the server’s certificate, and checks whether test-team is allowed to run datastore with the secure naming information. The client detects that test-team is not allowed to run the datastore service and the authentication fails.

Note that, for non HTTP/HTTPS traffic, secure naming doesn’t protect from DNS spoofing, in which case the attacker modifies the destination IPs for the service. Since TCP traffic does not contain Host information and Envoy can only rely on the destination IP for routing, Envoy may route traffic to services on the hijacked IPs. This DNS spoofing can happen even before the client-side Envoy receives the traffic.

Authentication policies

Authentication policies apply to requests that a service receives. To specify client-side authentication rules in mutual TLS, you need to specify the TLSSettings in the DestinationRule. You can find more information in our TLS settings reference docs.

Like other Istio configurations, users could deploy .yaml files using kubectl. For more information, check Peer Authentication and Request Authentication custom resources.

If you don’t provide a value for the selector field, Istio matches the policy to all workloads in the storage scope of the policy. Thus, the selector fields help you specify the scope of the policies. Istio applies the narrowest matching policy for each workload using the following order:

Workload-specific policy: a policy defined in the regular namespace, with non-empty selector field.
Namespace-wide policy: A policy specified for a non-root namespace without or with an empty selector field.
Mesh-wide policy: A policy specified for the root namespace without or with an empty selector field.

Istio can combine all matching request authentication policies to work as if they come from a single request authentication policy. Thus, you can have multiple mesh-wide or namespace-wide policies in a mesh or namespace. However, it is still a good practice to avoid having multiple mesh-wide or namespace-wide request authentication policies.

Peer authentication

Peer authentication policies specify the mutual TLS mode Istio enforces on target workloads. The following modes are supported:

PERMISSIVE: Workloads accept both mutual TLS and plain text traffic. This mode is most useful during migrations when workloads without sidecar cannot use mutual TLS. Once workloads are migrated with sidecar injection, you should switch the mode to STRICT.
STRICT: Workloads only accept mutual TLS traffic.
DISABLE: Mutual TLS is disabled. From a security perspective, you shouldn’t use this mode unless you provide your own security solution.

The following example authentication policy uses selector app:reviews specifies that transport authentication for the workloads with the app:reviews label must use mutual TLS.

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: "example-peer-authn-policy"
  namespace: "foo"
spec:
  selector:
    matchLabels:
      app: reviews
  mtls:
    mode: STRICT

When the mode is unset, the mode of the parent scope is inherited. Mesh-wide peer authentication policies with an unset mode use the PERMISSIVE mode by default.

Request authentication

Request authentication policies specify the values needed to validate a JSON Web Token (JWT). These values include, among others, the following:

The location of the token in the request
The issuer or the request
The public JSON Web Key Set (JWKS)

Istio checks the presented token, if presented against the rules in the request authentication policy, and rejects requests with invalid tokens. When requests carry no token, they are accepted by default. To reject requests without tokens, provide authorization rules that specify the restrictions for specific operations, for example paths or actions.

Request authentication policies can specify more than one JWT if each uses a unique location. When more than one policy matches a workload, Istio combines all rules as if they were specified as a single policy. This behavior is useful to program workloads to accept JWT from different providers. However, requests with more than one valid JWT are not supported because the output principal of such requests is undefined.

For more information about Istio Authentication, check PeerAuthentication and RequestAuthentication CRD, tasks and best practices.

Authorization

Istio’s authorization features provide mesh-, namespace-, and workload-wide access control for your workloads in the mesh. This level of control provides the following benefits:

Workload-to-workload and end-user-to-workload authorization.
A simple API: it includes a single AuthorizationPolicy CRD, which is easy to use and maintain.
Flexible semantics: operators can define custom conditions on Istio attributes, and use CUSTOM, DENY and ALLOW actions.
High performance: Istio authorization (ALLOW and DENY) is enforced natively on Envoy.
High compatibility: supports gRPC, HTTP, HTTPS and HTTP/2 natively, as well as any plain TCP protocols.

Authorization architecture

The authorization policy enforces access control to the inbound traffic in the server side Envoy proxy. Each Envoy proxy runs an authorization engine that authorizes requests at runtime. When a request comes to the proxy, the authorization engine evaluates the request context against the current authorization policies, and returns the authorization result, either ALLOW or DENY. Operators specify Istio authorization policies using .yaml files.

Implicit enablement

You don’t need to explicitly enable Istio’s authorization features; they are available after installation. To enforce access control to your workloads, you apply an authorization policy.

For workloads without authorization policies applied, Istio allows all requests.

Authorization policies support ALLOW, DENY and CUSTOM actions. You can apply multiple policies, each with a different action, as needed to secure access to your workloads.

Istio checks for matching policies in layers, in this order: CUSTOM, DENY, and then ALLOW. For each type of action, Istio first checks if there is a policy with the action applied, and then checks if the request matches the policy’s specification. If a request doesn’t match a policy in one of the layers, the check continues to the next layer.

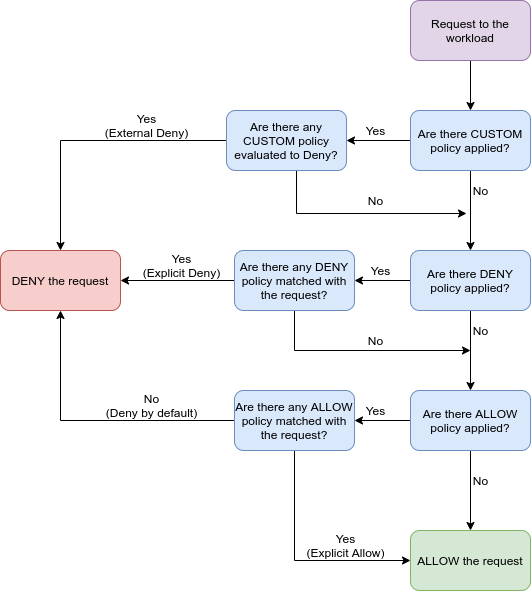

The following graph shows the policy precedence in detail:

When you apply multiple authorization policies to the same workload, Istio applies them additively.

Authorization policies

To configure an authorization policy, you create an AuthorizationPolicy custom resource. An authorization policy includes a selector, an action, and a list of rules:

The selector field specifies the target of the policy
The action field specifies whether to allow or deny the request
The rules specify when to trigger the action
- The from field in the rules specifies the sources of the request
- The to field in the rules specifies the operations of the request
- The when field specifies the conditions needed to apply the rule

The following example shows an authorization policy that allows two sources, the cluster.local/ns/default/sa/sleep service account and the dev namespace, to access the workloads with the app: httpbin and version: v1 labels in the foo namespace when requests sent have a valid JWT token.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin
 namespace: foo
spec:
 selector:
   matchLabels:
     app: httpbin
     version: v1
 action: ALLOW
 rules:
 - from:
   - source:
       principals: ["cluster.local/ns/default/sa/sleep"]
   - source:
       namespaces: ["dev"]
   to:
   - operation:
       methods: ["GET"]
   when:
   - key: request.auth.claims[iss]
     values: ["https://accounts.google.com"]

The following example shows an authorization policy that denies requests if the source is not the foo namespace:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin-deny
 namespace: foo
spec:
 selector:
   matchLabels:
     app: httpbin
     version: v1
 action: DENY
 rules:
 - from:
   - source:
       notNamespaces: ["foo"]

The deny policy takes precedence over the allow policy. Requests matching allow policies can be denied if they match a deny policy. Istio evaluates deny policies first to ensure that an allow policy can’t bypass a deny policy.

Policy Target

You can specify a policy’s scope or target with the metadata/namespace field and an optional selector field. A policy applies to the namespace in the metadata/namespace field. If set its value to the root namespace, the policy applies to all namespaces in a mesh. The value of the root namespace is configurable, and the default is istio-system. If set to any other namespace, the policy only applies to the specified namespace.

You can use a selector field to further restrict policies to apply to specific workloads. The selector uses labels to select the target workload. The selector contains a list of {key: value} pairs, where the key is the name of the label. If not set, the authorization policy applies to all workloads in the same namespace as the authorization policy.

For example, the allow-read policy allows "GET" and "HEAD" access to the workload with the app: products label in the default namespace.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: allow-read
  namespace: default
spec:
  selector:
    matchLabels:
      app: products
  action: ALLOW
  rules:
  - to:
    - operation:
         methods: ["GET", "HEAD"]

Value matching

Most fields in authorization policies support all the following matching schemas:

Exact match: exact string match.
Prefix match: a string with an ending "*". For example, "test.abc.*" matches "test.abc.com", "test.abc.com.cn", "test.abc.org", etc.
Suffix match: a string with a starting "*". For example, "*.abc.com" matches "eng.abc.com", "test.eng.abc.com", etc.
Presence match: * is used to specify anything but not empty. To specify that a field must be present, use the fieldname: ["*"]format. This is different from leaving a field unspecified, which means match anything, including empty.

There are a few exceptions. For example, the following fields only support exact match:

The key field under the when section
The ipBlocks under the source section
The ports field under the to section

The following example policy allows access at paths with the /test/* prefix or the */info suffix.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: tester
  namespace: default
spec:
  selector:
    matchLabels:
      app: products
  action: ALLOW
  rules:
  - to:
    - operation:
        paths: ["/test/*", "*/info"]

Exclusion matching

To match negative conditions like notValues in the when field, notIpBlocks in the source field, notPorts in the to field, Istio supports exclusion matching. The following example requires a valid request principals, which is derived from JWT authentication, if the request path is not /healthz. Thus, the policy excludes requests to the /healthz path from the JWT authentication:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: disable-jwt-for-healthz
  namespace: default
spec:
  selector:
    matchLabels:
      app: products
  action: ALLOW
  rules:
  - to:
    - operation:
        notPaths: ["/healthz"]
    from:
    - source:
        requestPrincipals: ["*"]

The following example denies the request to the /admin path for requests without request principals:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: enable-jwt-for-admin
  namespace: default
spec:
  selector:
    matchLabels:
      app: products
  action: DENY
  rules:
  - to:
    - operation:
        paths: ["/admin"]
    from:
    - source:
        notRequestPrincipals: ["*"]

`allow-nothing`, `deny-all` and `allow-all` policy

The following example shows an ALLOW policy that matches nothing. If there are no other ALLOW policies, requests will always be denied because of the “deny by default” behavior.

Note the “deny by default” behavior applies only if the workload has at least one authorization policy with the ALLOW action.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: allow-nothing
spec:
  action: ALLOW
  # the rules field is not specified, and the policy will never match.

The following example shows a DENY policy that explicitly denies all access. It will always deny the request even if there is another ALLOW policy allowing the request because the DENY policy takes precedence over the ALLOW policy. This is useful if you want to temporarily disable all access to the workload.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: deny-all
spec:
  action: DENY
  # the rules field has an empty rule, and the policy will always match.
  rules:
  - {}

The following example shows an ALLOW policy that allows full access to the workload. It will make other ALLOW policies useless as it will always allow the request. It might be useful if you want to temporarily expose full access to the workload. Note the request could still be denied due to CUSTOM and DENY policies.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: allow-all
spec:
  action: ALLOW
  # This matches everything.
  rules:
  - {}

Custom conditions

You can also use the when section to specify additional conditions. For example, the following AuthorizationPolicy definition includes a condition that request.headers[version] is either "v1" or "v2". In this case, the key is request.headers[version], which is an entry in the Istio attribute request.headers, which is a map.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin
 namespace: foo
spec:
 selector:
   matchLabels:
     app: httpbin
     version: v1
 action: ALLOW
 rules:
 - from:
   - source:
       principals: ["cluster.local/ns/default/sa/sleep"]
   to:
   - operation:
       methods: ["GET"]
   when:
   - key: request.headers[version]
     values: ["v1", "v2"]

The supported key values of a condition are listed on the conditions page.

Authenticated and unauthenticated identity

If you want to make a workload publicly accessible, you need to leave the source section empty. This allows sources from all (both authenticated and unauthenticated) users and workloads, for example:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin
 namespace: foo
spec:
 selector:
   matchLabels:
     app: httpbin
     version: v1
 action: ALLOW
 rules:
 - to:
   - operation:
       methods: ["GET", "POST"]

To allow only authenticated users, set principals to "*" instead, for example:

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin
 namespace: foo
spec:
 selector:
   matchLabels:
     app: httpbin
     version: v1
 action: ALLOW
 rules:
 - from:
   - source:
       principals: ["*"]
   to:
   - operation:
       methods: ["GET", "POST"]

Using Istio authorization on plain TCP protocols

Istio authorization supports workloads using any plain TCP protocols, such as MongoDB. In this case, you configure the authorization policy in the same way you did for the HTTP workloads. The difference is that certain fields and conditions are only applicable to HTTP workloads. These fields include:

The request_principals field in the source section of the authorization policy object
The hosts, methods and paths fields in the operation section of the authorization policy object

The supported conditions are listed in the conditions page. If you use any HTTP only fields for a TCP workload, Istio will ignore HTTP-only fields in the authorization policy.

Assuming you have a MongoDB service on port 27017, the following example configures an authorization policy to only allows the bookinfo-ratings-v2 service in the Istio mesh to access the MongoDB workload.

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: mongodb-policy
  namespace: default
spec:
 selector:
   matchLabels:
     app: mongodb
 action: ALLOW
 rules:
 - from:
   - source:
       principals: ["cluster.local/ns/default/sa/bookinfo-ratings-v2"]
   to:
   - operation:
       ports: ["27017"]

Dependency on mutual TLS

Istio uses mutual TLS to securely pass some information from the client to the server. Mutual TLS must be enabled before using any of the following fields in the authorization policy:

the principals and notPrincipals field under the source section
the namespaces and notNamespaces field under the source section
the source.principal custom condition
the source.namespace custom condition

Note it is strongly recommended to always use these fields with strict mutual TLS mode in the PeerAuthentication to avoid potential unexpected requests rejection or policy bypass when plain text traffic is used with the permissive mutual TLS mode.

Check the security advisory for more details and alternatives if you cannot enable strict mutual TLS mode.

Learn more

After learning the basic concepts, there are more resources to review:

Try out the security policy by following the authentication and authorization tasks.
Learn some security policy examples that could be used to improve security in your mesh.
Read common problems to better troubleshoot security policy issues when something goes wrong.

Security

High-level architecture

Istio identity and certificate management

Authentication

Mutual TLS authentication

Secure naming

Authentication policies

Peer authentication

Request authentication

Authorization

Authorization architecture

Implicit enablement

Authorization policies

Policy Target

Value matching

Exclusion matching

allow-nothing, deny-all and allow-all policy

Custom conditions

Authenticated and unauthenticated identity

Using Istio authorization on plain TCP protocols

Dependency on mutual TLS

Learn more

`allow-nothing`, `deny-all` and `allow-all` policy
